Modulo RFID UHF

Name: JT-2510 1-port TM200 UHF RFID Module 860-960MHz TTL
Availability: InStock

Casa RFID UHF 860-960 MHz Modulo RFID UHF

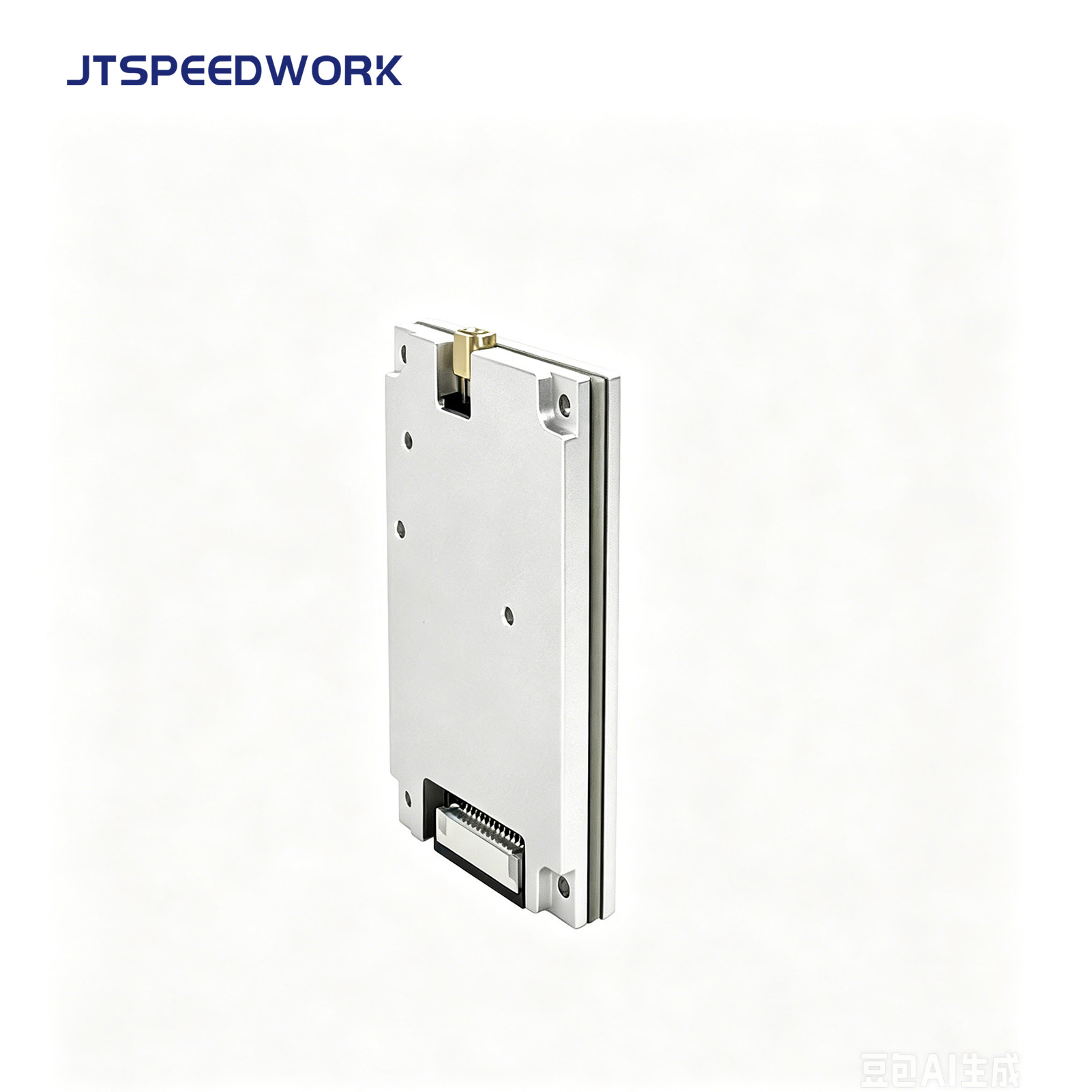

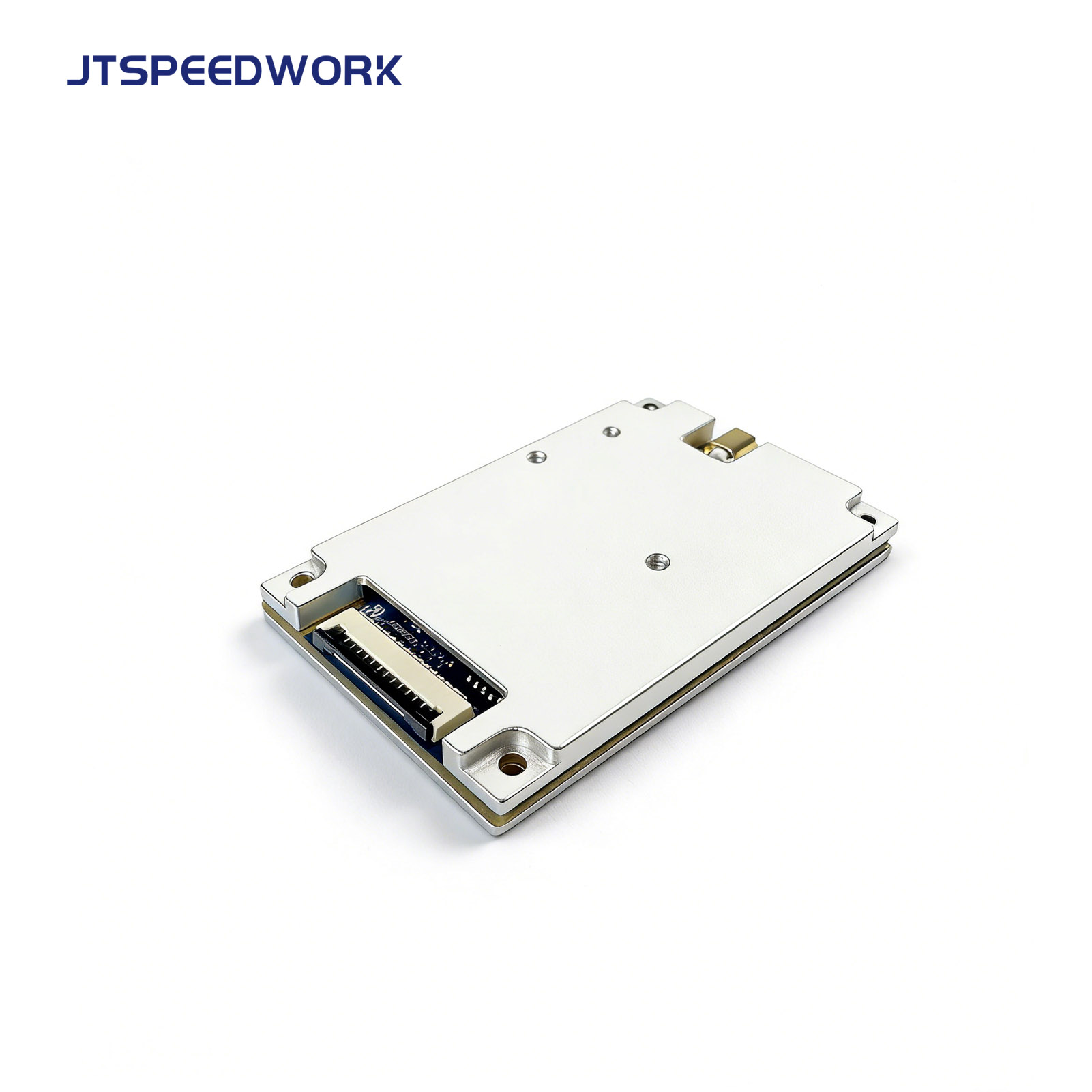

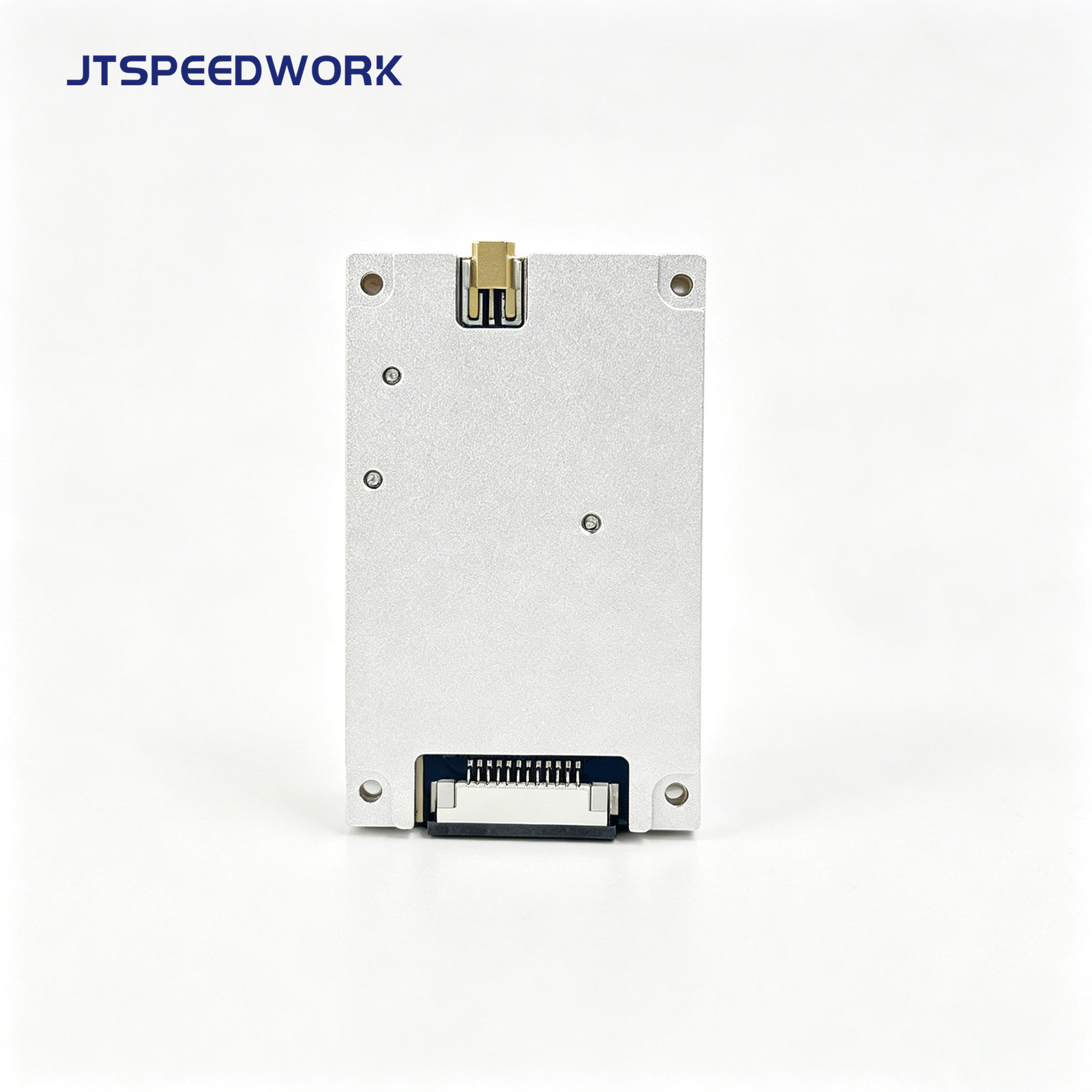

JT-2510 1-port TM200 UHF RFID Module 860-960MHz TTL

The JT-2510 is a compact, high-performance UHF RFID reader module with the TM200 RF chip. It works at 860–960 MHz, compliant with ISO 18000-6C (EPC Gen2).

With TTL UART interface and DC 3.7–5.0V power, it offers 13–33 dBm adjustable RF power, up to 7m read range and >700 reads/sec. It supports RSSI, fixed/hop frequency modes, and one MMCX antenna port.

Lightweight (24.2g) and small-sized (57.5×35.5×6.1mm), it operates at -20°C to 70°C, perfect for asset tracking, logistics and industrial use.

Numero articolo :
JT-2510
Colore :
Silver
Interfaccia di comunicazione :
Uart TTL
Protocollo :
ISO18000-6C
Frequenza di lavoro :
860-960MHz
chip RF :
TM200

Richiedi informazioni ora

Scaricamento

Item No.	JT-2510
Physical parameters		Antenna
Module size	57.5(L)35.5(W)6.1(H)mm	Antenna Ports
Weight	24.2g	1 MMCX-female conntector
Material	PCBA board	Power Supply
		Input Voltage	DC 3.7V~5.0V
RFID parameters		Power Consumption	10W(@max RF power 33dBm)
Air Protocol
EPC global Gen2(ISO18000-6C)		User Environment
RF Chip		Operating Temp.	-20 ℃ to 70 ℃
TM200		Storage Temp.	-30 ℃ to 80 ℃
Working frequency		Humidity	5% - 95% RH
860-960 MHz
RF power		Reading Performance
13~33 dBm(adjustable)		Reading rate
Work mode		>700 times/sec
Fixed / hop frequency		Reading distance
Tag RSSI		0-7m
Supported
Antenna Detector
Supported
